EFI SENSORS

Knock Sensor wire end- single

Single wire knock sensor plug - often used on 5.7 engines. Must splice to install, recommend using heat shrink on your splice.

Wire harness engine side- 3 wire sensor

3 wire sensor harness for R020038 and other applications using a 3 wire plug

Idle Air Control Valve # R084005

Throttle body Idle Air Control Valve # R084005 5.7 /5.0 L

O2 SENSOR SOCKET TOOL

O2 SENSOR SOCKET for removing O2 sensors, fits standard 3/8 drive ratchets and makes the process of installing/removing O2 sensors much simpler.

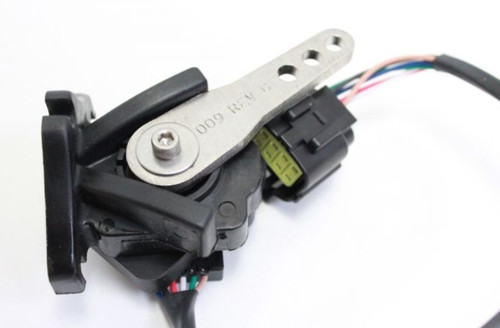

TCP SENSOR 5.7L & 6.0L DBW 2007 UP R119005A

This replacement Thottle Control Position sensor requires engine recalibration by Diacom software. Replaces PCM R119005.*If you presently have the R119005A TCP on the engine (aprox 2013 up) no calibration is required. Click on photo for...

MAP SENSOR GT-40 FORD EFI

Fits all PCM GT40 Multi-Port EFI marine engines. Bin Number (ISBN): 91815

SENSOR, MAP (IAFM) R020039

2002 UP PCM GM 5.7, 5.0L, Manifold Absolute Pressure. Bosch, with 4 pin connector. Bin Number (ISBN): 11817

CRANK SENSOR 5.0/5.7 MPI R020038

PCM 2002 UP 5.7/5.0 MPI, FITS INTO TIMING COVER. NOT FOR LT1/LTR OR 6.0L. Indmar MCX and 2006 and up Indmar 5.7L engines with HVS (flat cap) distributor. Indmar part number 556293. Bin Number (ISBN): 91511

MAP SENSOR GM TBI SOME MPI R020017

GM Throttle Body Injection Manifold Absolute Pressure sensor 94 and up. Also used on PCM Pro Tec Injection (BARO) and (MAP). Also fits Indmar LT1 and Monsoon 1 (96-97) Pt # 556006. Bin Number (ISBN): 81310

IDLE AIR CONTROLLER TBI

Throttle Body Injection IAC, GM 94 and up. Indmar old PT # 55-6085 now superceeded by S556094. Also fits Indmar LT1 Corvette. Bin Number (ISBN): 81210

ADAPTER, FLAT RSPNS KNOCK SENSOR

Adapter for the Flat Response Knock sensor. Indmar 2006 (original brass) up 5.7L and PCM 2008 up 5.7L, 5.0L. Engines with this style sensor will have one on each side of the block located in the block drain. Bin Number (ISBN): 92914

Sensor, Knock (Flat Response)

PCM usually 2008 & UP, GM 5.0L, 5.7L & 6.0L. There are some exceptions where the old style knock sensor has been used on both sides of the block (Item # 1249) after 2008. Bin Number (ISBN): 110312

MARINE COOLANT TEMPERATURE SENDER 6.0L R020046

Coolant temp sensor for 6.0L, ZR6, ZR409, LY-6, and L96. Indmar Pt # 55-6357. Bin Number (ISBN): 100621

SENSOR, WATER TEMP-MPI GT40

PCM GT40 all years, sends temp to the ECM for enrichment mode. #69 in the PCM parts book. An engine temperature sensor is an important part of your engine that is not often heard of but it plays a very important role in the engine’s overall...

CRANK POSITION SENSOR 6.0L 6.2L

Crank position sensor for 6.0 and 6.2 engines. Crank position sensor PCM ZR409, will not fit ZR6 use R020044. Bin Number (ISBN): 121621
