Product Description
Dual Taper, inboard drive shaft Pricing Good For Shafts Up To 5'
Most boats with 1:1 transmission (72c) and a big block engine (454, 440).
*UPS Shipping Only
The patented A.R.E. System is a double-taper drive shaft and coupling setup designed to greatly reduce the time and effort needed to remove and replace drive shafts. When used with tools developed by A.R.E. for drive train maintenance, the System typically cuts installation time in half.
System drive shafts are made of the finest shaft materials and are individually inspected to ensure the tapers have less than .003" T.I.R. runout and the coupling face runout is within.002" T.I.R. The shafts are straightened to less than .002" on 42" centers, producing a complete assembly far exceeding industry standards.
This dual taper shaft system includes everything in the picture except the coupler retaining nut socket Item #2216. Please supply the tip-to-tip measurement of your old shaft for accuracy.

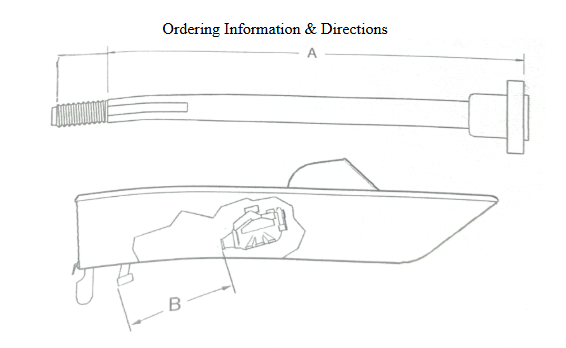

Please supply the measurement of your old shaft for accuracy. If your shaft is broken measure from the face of the transmission flange to the trailing edge of the strut (aft of strut) this is your A measurement we will add 4.6". If your shaft is in one piece we just need the measurement from the coupler face to the end of shaft that is your "B" measurement tell us if it's an A or B measurement.
OLD CATALOG NUMBER 1902
